商品詳細內容

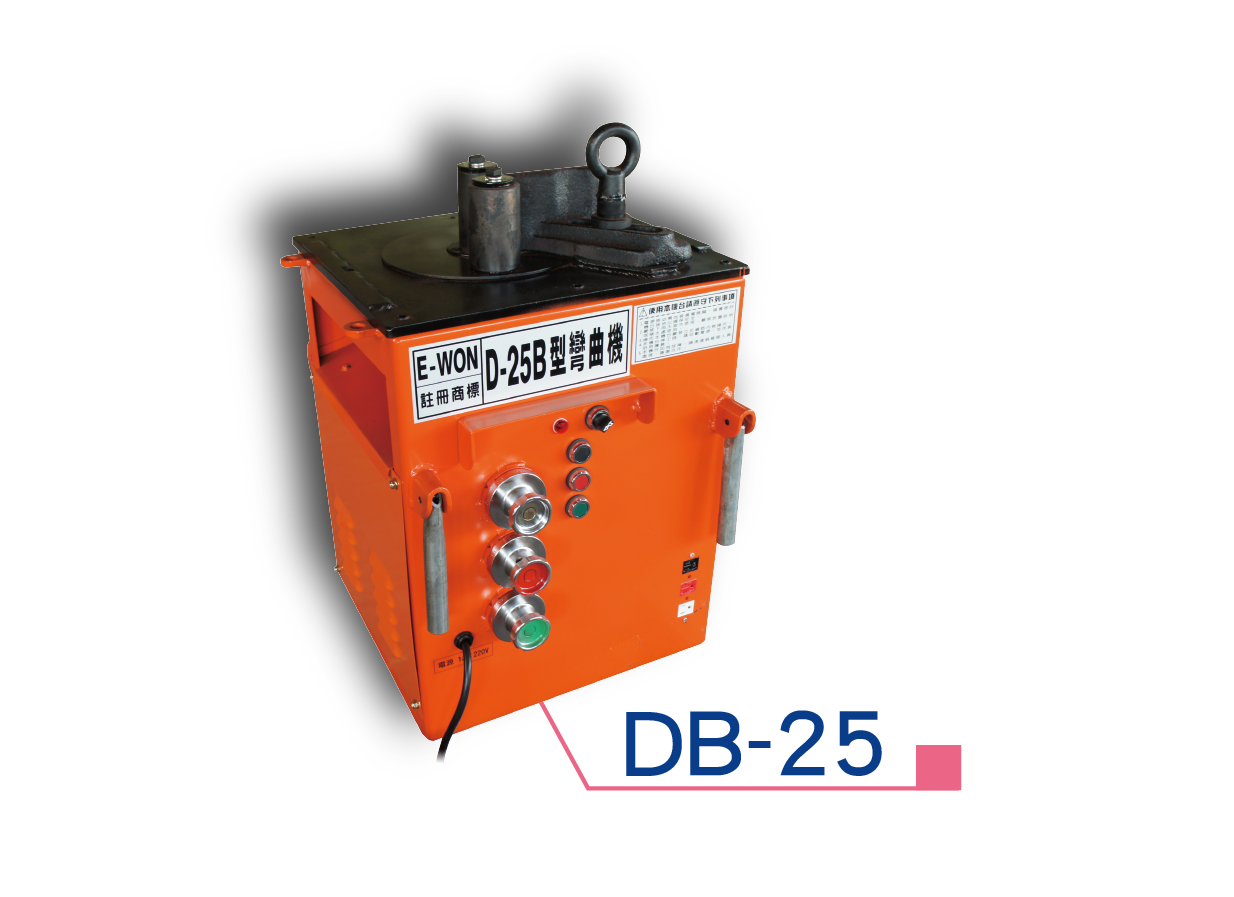

DB-25
- 商品編號: DB-25
- 商品分類: REBAR BENDER
詳細介紹
INTRODUCTION
1) Traditional transmission
2) Easy operation
3) Useful angles setting
4) Powerful twisting force
5) Stability & durability
6) Less malfunction, easy maintenance
TECHNICAL DATA
| MODEL | DB-25(Clockwise) |
| MAX BENDING CAPACITY / MANDREL | D25 / 90mm |
| BENDING ANGLE CAPACITY | 0~180°for 3 sets |
| MIN & MAX Ø | Ø60mm / Ø90mm |
| REQUIRED POWER |
Singel Phase Current 220V 50/60Hz±10% |
| 2.5HP 10A | |
| DIMENSIONS (L×W×H) | 540 × 515 × 735mm |
| WEIGHT | 140kg |
